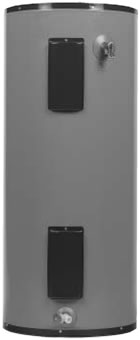

美國鷹牌熱水器80升家用電熱水器E61-30H-030DV

希望享受穩定可靠熱水器的家庭的理想選擇。

兩個加熱元件，4.5KW/240伏（如果需要其他功率和電壓的熱水器，請與我們聯系），效率最高

Dual Heating Elements, 4.5 KW/240 Volts (other wattages and voltages available) for maximum efficiency

有效防止熱量損失，降低能源成本的的不含氯氟烴的聚氨酯泡沫
Non-CFC Polyurethane Foam to prevent heat loss & reduce energy costs

抗腐蝕保護的Fused Ceramic Shield TankTM（熔融陶瓷盾板）內膽
Fused Ceramic Shield TankTM for anti-corrosion protection

工廠安裝的側面降溫減壓安全閥
Factory Installed Side Temperature & Pressure Valve

溫控器/高溫限制控制器，使得用戶能夠調節水溫，防止過熱
Thermostat/High Limit Control allows adjustment of water temperature while preventing overheat protection

內置電氣接線盒，便于熱水器的安裝
Built-In Electric Junction Box for convenient installation

非金屬，防腐蝕排污閥
Non-Metallic, Corrosion-Free Drain Valve

美國UL 174認證，1990美國電器節能法典(NAECA)認證，BOCA和美國采暖、制冷與空調工程師學會(ASHARE)90.1b-1992認證。所有型號均通過300 PSI試驗壓力和150 PSI工作壓力的檢測認證。
Listed to UL 174, 1990 NAECA approved, BOCA and ASHRAE 90.1b-1992. All models are certified at 300 PSI test pressure and 150 PSI working pressure.

Fused Ceramic Shield Tank^TM（熔融陶瓷盾板）內膽
堅固、厚實、耐用的藍鈷陶瓷經過871^oC高溫熔融在內膽內部表面上，形成防腐蝕內層，可靠保護和使用可達數年之久。
Fused Ceramic Shield^TM
A tough, thick durable coat of blue cobalt ceramic is fused to the tank’s interior surfaces at 1600^oF, forming a corrosion-resistant lining for years of dependable protection and use.
兩個加熱元件
螺紋擰進，直接浸入近，4500瓦/240伏加熱元件，效率最高。如果需要其他種類的電源配置，請與我們聯系。
Dual Heating Elements
Screw-in, direct immersion, 4500-watt, 240-volt heating elements for maximum efficiency. Available in multiple wattages and voltages for every job.
不含氯氟烴的聚氨酯泡沫絕緣保溫層
這種內膽環繞著厚實的不含氯氟烴的聚氨酯泡沫絕緣保溫層，將熱量保留在內膽內，節約能源。
Non-CFC Foam Insulation
The tank is surrounded by a thick coat of non-CFC polyurethane foam to trap heat inside the tank, saving energy.
內浸管
將進入的冷水引入內膽底部，將熱水溫度混合稀釋作用降到最小程度。
Dip Tube
Carries cold inlet water deep into the tank to minimize temperature dilution of hot water.
降溫減壓安全閥
位于熱水器側面，使得采用管道連接到排污口或建筑物外部更加簡便易行。也可提供頂部安裝的降溫減壓安全閥安裝孔，用于現場安裝降溫減壓安全閥。
T&P Valve
Conveniently located on the side of the tank to facilitate piping to a drain or external to the building. Also available with top T&P opening for field-installed top T&P valve.
3/4英寸通徑的水接頭
位于頂部。
3/4” Water Connections
Located on top.
陽極棒
頂部安裝，加強型陽極，加強對內膽的保護，延長內膽的使用壽命。
Anode Rod
Top-mounted, heavy duty anode for added tank protection, extending the life of the tank.
內置電氣接線盒
位于頂部，使用方便的接線盒，適用于1/2英寸或3/4英寸導線管。
Built-In Electric Junction Box
Top-located, convenient junction box, ready for 1/2” or 3/4” conduit.
溫控器/高溫限制控制器
組合控制裝置用于調節水溫，防止出現過熱現象。
Thermostat/High Limit Control
Combination control allows adjustment of water temperature while preventing overheat protection.
通過的認證標準
美國UL 174認證，1990美國電器節能法典(NAECA)認證，BOCA和美國采暖、制冷與空調工程師學會(ASHARE)90.1b-1992認證。所有型號均通過300 PSI試驗壓力和150 PSI工作壓力的檢測認證。
Code Approvals
Listed to UL 174, 1990 NAECA approved, BOCA and ASHRAE 90.1b-1992. All models are certified at 300 PSI test pressure and 150 PSI working pressure.
排污閥
保護兒童，防腐排污閥。
Drain Valve
Child-resistant, corrosion-resistant drain valve.

6年有限內膽質量保證

　　采用堅固耐用的強力量具鋼材料，經過自動控制設備進行成型、軋制滾圓和焊接，確保Fused Ceramic Shield^TM（熔融陶瓷盾板）熱水器內膽接縫緊密結實。每個內膽都經過三重檢驗，確保沒有質量問題。

6-Year Limited Tank Warranty

　　Heavy gauge steel is automatically formed, rolled and welded to assure continuous seams for the Fused Ceramic Shield^TM Tank Lining. Each Tank is triple tested to ensure quality.

1年有限配件質量保證

　　原廠配件質量保證6年。

1-Year Limited Parts Warranty

　　Original factory parts warranted for 6 years.

　　
　　如果需要完整的質量保證資料，請致電021-51002402向美國人熱水器公司中國公司咨詢書面質量保證書。
　　For complete warranty information consult the written warranty of American Water Heater Company at 021-51002402。
